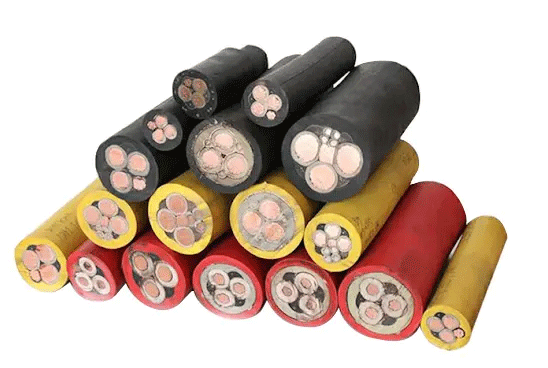

Rubber Cable
Rubber Sheath Flexible Cable For Communication
1. General Description
Suitable for mobile devices such as fast moving container cranes and lifting equipment, capable of driving large equipment and excavators, as well as situations with high mechanical stress such as ground and underground mining. The product has strong voltage impact resistance and can withstand pulse voltage during frequency conversion. The cable has good shielding and effectively eliminates electromagnetic interference, reduces noise from frequency conversion motors, and ensures stable system operation. Widely used in industries such as metallurgy, power, and petrochemicals.
2. Type and Material
| Type | Name | Application |
| YQ, YQW | Light type rubber sheath flexible cable | Used for light portable movable electric equipment and tools |
| 60245IEC53(YZ)60245lEC57 (YZ\V) YZ. YZW | Middle type rubber sheath flexible cable | Used for various portable movable electric ecjuipmenl and tools |
| 60245IEC66 (YC\V) YC, YC\V | Heavy type rubber sheath flexible cable | Used for various portable movable electric equipment which can bear larger mechanical of force effect |

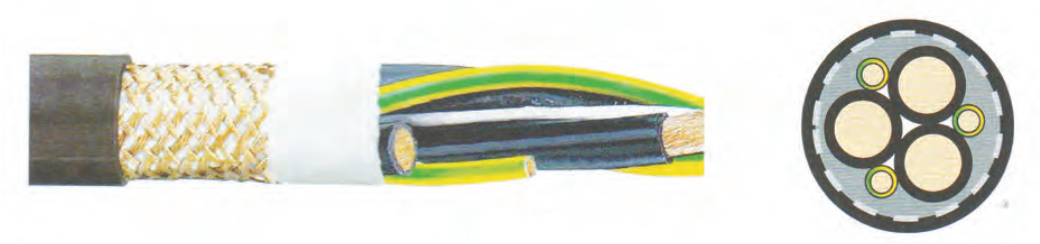

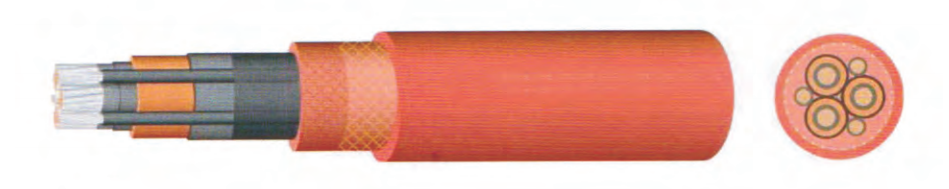

3. Construction
Welding Machine Cable (GB/T5013.6-2008)
1. Type and Material
| Model | Name | Working temperature of core≤(℃) |
| 6O245 IEC8KW) | Rubber sheath for welding macliine cable | 65 |
| YHF | Neoprene or other synthcitic rubber sheath welding machine cable |
2. Properties
1.1 Rated operating voltage:in the AC voltage 600V system,the maximum akllowable operating voltage is 600Vx 1 .2.
1.2 Test AC voltage:3.5Kv for 5min
1.3 Temperature requirement
Continuous movable operating temperature: -35C-60c, Fixed installation temperature: -50C -80C
Maximum allowable operating temperature: 90C, Permissible short-circuit temperature:200C
1.4. Medianical property
Tensile load: > 15N/mm2, Bending radius:10D
Reverse restriction: ±90 Degrees/m, Operate Speed: 150m /min
