Heavy Industrial Cable
Low Voltage Reeling Cable
1. General Description
Suitable for mobile devices such as fast running container cranes and lifting equipment, capable of driving large equipment and excavators, as well as situations with high mechanical stress in ground and underground mining etc equipments.
2. Construction
3. Models and Specifications:
GJTJP: Low voltage reeling cable
ZR-GJTJP: Flame resistant low voltage reeling cable
4. Properties
1. The rated voltage U0/U of the cable is 0.6/1KV
2. The long-term allowable working temperature of the cable is 0 ℃, and the minimum outdoor ambient temperature is -35 ℃, which has characteristics of ozone resistance, ultraviolet radiation, and moisture resistance.
3. The cable has oil resistance characteristics.
4. The cable should withstand 3.5KV/5min.
Medium Voltage Spreader Reeling Cable
1. General Description
Suitable for mobile devices such as fast moving container cranes and lifting equipment, capable of driving large equipment and excavators, as well as situations with high mechanical stress such as ground and underground mining. The product has strong voltage impact resistance and can withstand pulse voltage during frequency conversion. The cable has good shielding and effectively eliminates electromagnetic interference, reduces noise from frequency conversion motors, and ensures stable system operation. Widely used in industries such as metallurgy, power, and petrochemicals.
3. Models and Specifications:
GJTJ: Medium Voltage Spreader Cable
4. Properties
1. The rated voltage U0/U of the cable is 3.6/6KV, 6/10KV.
2. The long-term allowable working temperature of the cable is 90 ℃, and the minimum outdoor ambient temperature is -35 ℃. The cable has characteristics of resistance to ozone, ultraviolet radiation, and moisture.
3. The cable has oil resistance.
4. The cable should withstand a 17KV/5min21KV/5min core to core voltage test

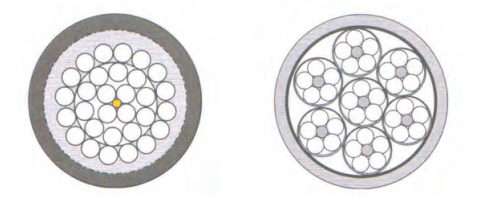

Festoon System Cable
1. General Description
1. It has good waterproof, oil resistant, and UV resistant properties, and can adapt to various harsh climates.
2. Suitable for frequent moving conditions, reaching a stretching and retracting operating speed of over 2.5 meters/second.
2. Construction
3. Models and Specifications:
GJTR: Festoon System Cable
4. Properties
1.1 Rated operating voltage:in the AC voltage 600V system,the maximum akllowable operating voltage is 600Vx 1 .2.
1.2 Test AC voltage:3.5Kv for 5min
1.3 Temperature requirement
Continuous movable operating temperature: -35C-60c, Fixed installation temperature: -50C -80C
Maximum allowable operating temperature: 90C, Permissible short-circuit temperature:200C
1.4. Medianical property
Tensile load: > 15N/mm2, Bending radius:10D
Reverse restriction: ±90 Degrees/m, Operate Speed: 150m /min

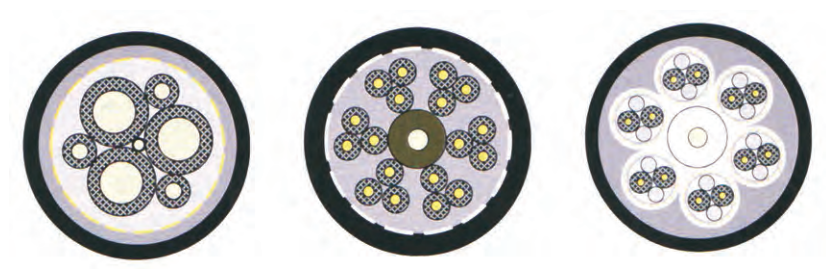

High Flexible Drag Chain System Cable
1. General Description
The new generation of highly flexible drag chain cables for control and connection are widely used, not only for measurement and control circuits, but also as power connection lines and assembly lines for automation control and robots. They can also be used for mobile devices, cable conveyors, cable carts, and other occasions, especially suitable for installation and operation in humid environments, drag chain conveyor lines, and other continuous and fast moving situations.
2. Construction
3. Models and Specifications:
GJLR-DA: High Flexible Drag Chain System Cable
4. Properties
1. The long-term allowable working temperature of the cable is 90 ℃, and the minimum outdoor ambient temperature is -35c. It has high wear resistance, ozone resistance, oil resistance, flame retardancy, UV resistance, and moisture resistance.
2. The rated voltage of the cable U0/U is 0.6/1k3. The AC test voltage of the cable is 3.5V, and it does not breakdown for 5 minutes.
