H05V-K H07V-K H03VV-F H03VV H2-FH05VV-F H05VV H2-F

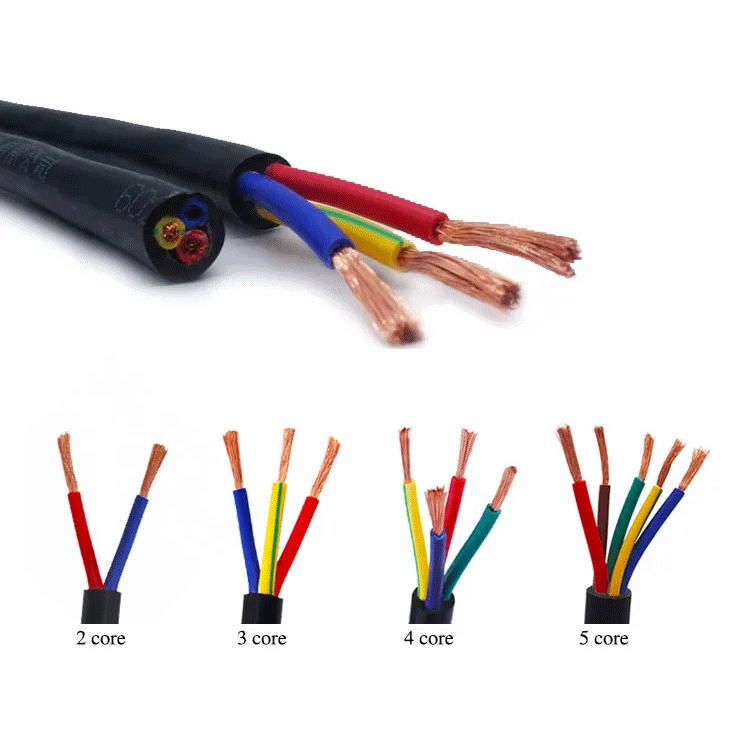

CE Power Cord H05V-K And H07V-K
1. Application
Used for flexible connections inside electrical appliances, instruments, and electrical devices. Connection between instruments, devices, distribution boards, power distributors (boards), and telecommunications equipment, also suitable for dry protection systems (grounding wires) and alarm lights. Used in damp and oil-water mixed places, Used for electrical appliances, instruments, power equipment, and automation devices, with no forced traction, no direction, and movable connecting wires inside and outside.
2. Cable Structure
Conductor: Single or stranded bare copper or tinned copper wire in accordance with IEC60228VDE 0295 Class5 standard
Insulation: PVC/TI1 according to DIN VDE 0281 Part 1+HD21.1
Color code: The wire core is identified by color and complies with HD402 standard
Application standards: HD21.3 S3, VDE-0281 Part-3, CE Low Voltage Directive, 73/23/EEC, and 93/68/EEC
3. Technical Parameter
Rated voltage: 30OV/500V
Test voltage: 2000V in accordance with DIN VDE0281 Part 2+HD21.2
Minimum bending radius fixed laying: 12.5XD (cable outer diameter)
Mobile installation: 12.5XD (cable outer diameter)
Fixed laying temperature range: -30 to+80 ℃
Mobile installation: -5 to+70 ℃
Flame retardancy: flame retardant and self-extinguishing
Complies with IEC60332-1-2+EN60332-1-2 ULvW-1+CSA FT1
Insulation resistance: 10MQ x km
4. Characteristics and Compliance
Characteristics: Solid single core wire,easy to peel,cut,easy to install,in line with the EU standard

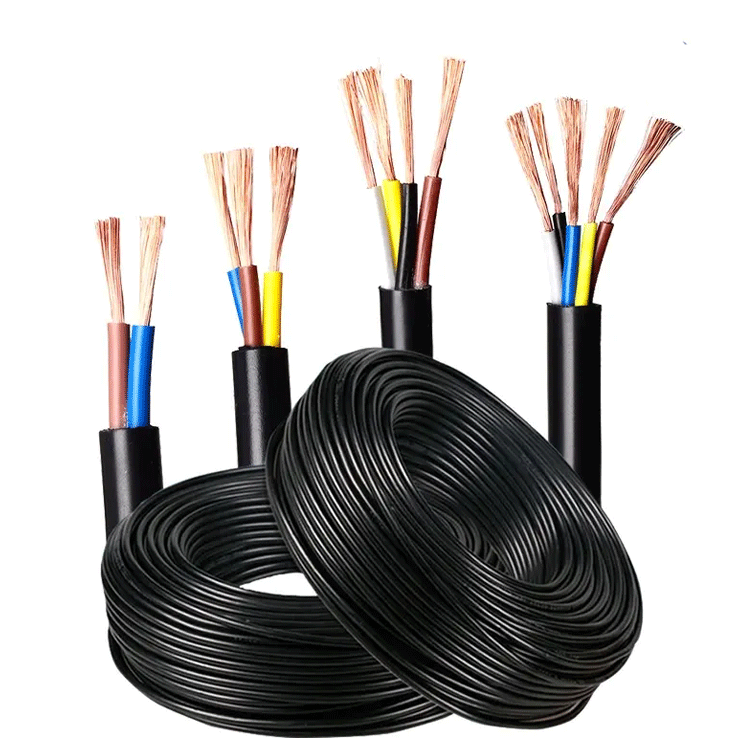

CE Power Cord H03VV-H2-F And H03VV-F
1. Application
Used for flexible connections inside electrical appliances, instruments, and electrical devices. Connection between instruments, devices, distribution boards, power distributors (boards), and telecommunications equipment, also suitable for dry protection systems (grounding wires) and alarm lights.
2. Data Reference
Conductor: Single or stranded bare copper or tinned copper wire VDE 0281 Part 5, HD21.5S3 IEC 227-5
Insulation: PVC/TI2 PVC according to DINVDE0281 Part 1+HD21.1
Color code: The wire core is identified by color and should comply with HD402 standard
Sheath material: PVC/TM2 type polyvinyl chloride
Sheath color: black (RAL9005)
Application standards:<HAR>HD21.5 S3, VDE-0281 Part-5, CE low voltage directive, 73/23/EEC&93/68/EEC. IEC 60227-5
3. Technical Parameter
Rated voltage: 30OV/300V
Test voltage: 2000V in accordance with DIN VDE0281 Part 2+HD21.2
Minimum bending radius fixed laying: 4XD (cable outer diameter)
Mobile installation: 7.5XD (cable outer diameter)
Fixed laying temperature range: -40 to+70 ℃
Mobile installation: -5 to+70 ℃
Flame retardancy: flame retardant and self-extinguishing
Complies with IEC60332-1-2+EN60332-1-2 ULvW-1+CSA FT1, IEC60332.1
Insulation resistance: 20MQ x km
4. Characteristics and Compliance
Characteristics: Conforming to EU coordinated standards; Ultrafine conductor with soft and small bending angle
Flat structure, economical and space saving, capable of withstanding certain mechanical external forces

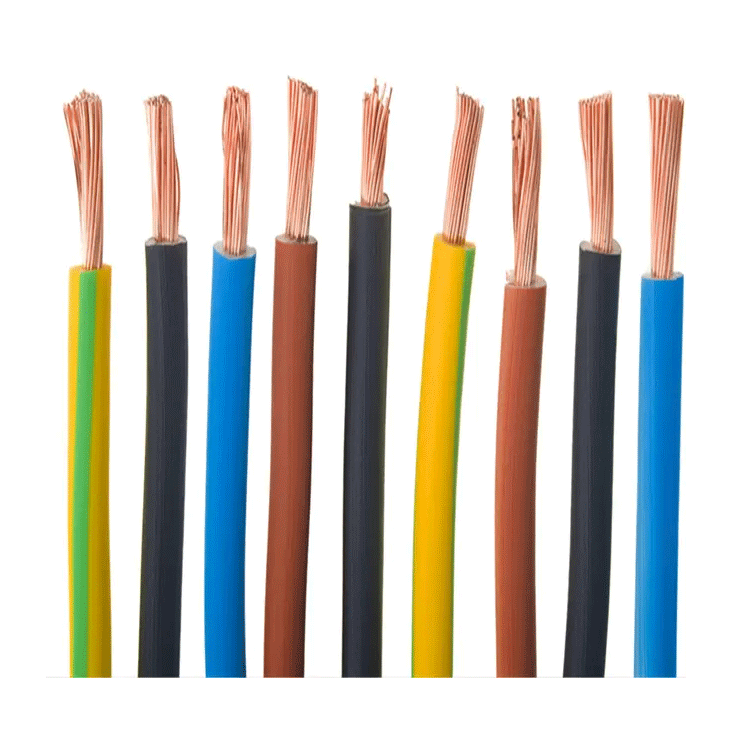

CE Power Cord H05VV H2-F And H05VV-F
1. Application
Used for electrical appliances, instruments, power equipment, and automation devices, with no forced traction, no direction, and movable connecting wires inside and outside. Used in damp and oil-water mixed places.
2. Cable Structure
Conductor: Single or stranded bare copper or tinned copper wire VDE 0281 Part 5, HD21.5S3 IEC 227-5
Insulation: PVC/TI2 PVC according to DINVDE0281 Part 1+HD21.1
Color code: The wire core is identified by color and should comply with HD402 standard
Sheath material: PVC/TM2 type polyvinyl chloride
Sheath color: black (RAL9005)
Application standards:<HAR>HD21.5 S3, VDE-0281 Part-5, CE low voltage directive, 73/23/EEC&93/68/EEC. IEC 60227-5
3. Technical Parameter
Rated voltage: 30OV/500V
Test voltage: 2000V in accordance with DIN VDE0281 Part 2+HD21.2
Minimum bending radius fixed laying: 4XD (cable outer diameter)
Mobile installation: 7.5XD (cable outer diameter)
Fixed laying temperature range: -40 to+70 ℃
Mobile installation: -5 to+70 ℃
Flame retardancy: flame retardant and self-extinguishing
Complies with IEC60332-1-2+EN60332-1-2 ULvW-1+CSA FT1, IEC60332.1
Insulation resistance: 20MQ x km
4. Characteristics and Compliance
Characteristics: Conforming to EU coordinated standards; Ultrafine conductor with soft and small bending angle. Flat structure, economical and space saving, capable of withstanding certain mechanical external forces
5. MOQ: 5000M
