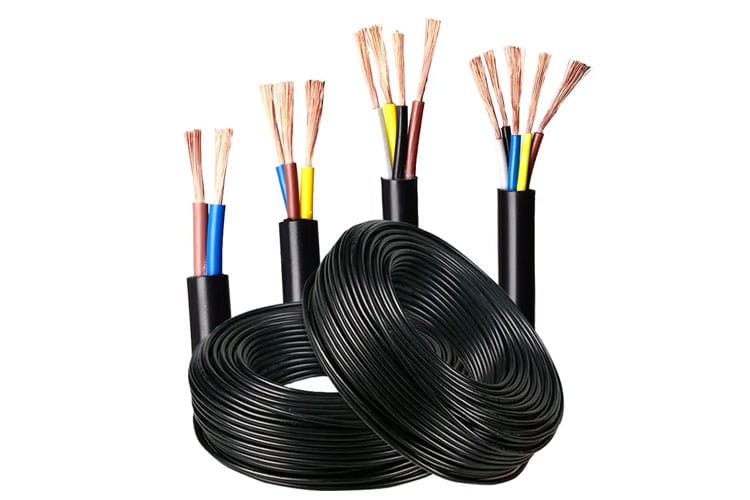

Flexible PVC Insulated Cable
Multi-cores Customized PVC Insulated Flexible Wire (GB/T5023-2008)
1, Application
The fleixble PVC insulated cable is suit for AC rated voltage 450/750V and below of domestic electric application of smaller size motorriace tools of instruments of various meters and motorized lighting installations.
RVV cable is a kind of sheathed wire, fully known as copper core PVC insulated PVC sheathed flexible wire, also known as light PVC sheathed flexible wire, commonly known as soft sheathed wire. It is mainly used in power line, control line and signal transmission line for electrical appliances, instruments, electronic equipment and automation devices, and can be used for anti-theft alarm system, building intercom system, etc.
2, PVC Insulated Cable Applying Temperature
Working Temperature≤ 70℃
3, Model and Name
| Voltage Level | Nominal section | Toplimit of overall diameter | Maximum DC resistance | Minimum insulation resistance | Recommended value of carrying capacity | Reference weight |
| (V) | (mm²) | (mm) | (20℃) | (70℃) | (A) | (KG,KM) |
| 300/300 | 2×0.5 | 5.9 | 3.9 | 0.012 | 10 | 37 |
| 2×0.75 | 6.3 | 26 | 0.01 | 13 | 47 | |
| 3×0.5 | 6.3 | 39 | 0.012 | 8 | 44 | |
| 3×0.75 | 6.7 | 26 | 0.01 | 10 | 58 | |
| 2×0.75 | 7.2 | 26 | 0.011 | 13 | 58 | |
| 300/500 | 2×1.0 | 7.5 | 19.5 | 0.01 | 16 | 66 |
| 2×1.5 | 8.6 | 13.3 | 0.01 | 20 | 89 | |
| 2×2.5 | 10.6 | 7.98 | 0.009 | 27 | 137 | |
| 2×4 | 12.4 | 4.95 | 0.007 | 38 | 205 | |
| 2×6 | 14.5 | 3.3 | 0.006 | 50 | 280 | |
| 3×0.75 | 7.6 | 26 | 0.011 | 9 | 70 | |
| 3×1.0 | 8 | 19.5 | 0.01 | 11 | 80 | |
| 3×1.5 | 9.4 | 13.3 | 0.01 | 12 | 112 | |
| 3×2.5 | 11.4 | 7.98 | 0.009 | 21 | 172 | |
| 3×4 | 13.5 | 4.95 | 0.007 | 27 | 255 | |
| 3×6 | 14 | 3.3 | 0.006 | 34 | 340 | |
| 4×0.75 | 8.3 | 26 | 0.011 | 10 | 84 | |
| 4×1.0 | 9 | 19.5 | 0.01 | 12 | 101 | |
| 4×1.5 | 10.5 | 13.3 | 0.01 | 13 | 141 | |
| 4×2.5 | 12.5 | 7.98 | 0.009 | 21 | 210 | |
| 4×4 | 14.6 | 4.95 | 0.007 | 27 | 310 | |
| 4×6 | 16 | 3.3 | 0.006 | 35 | 425 | |
| 5×0.75 | 9.3 | 26 | 0.011 | 10 | 103 | |
| 5×1.0 | 9.8 | 19.5 | 0.01 | 12 | 119 | |
| 5×1.5 | 11.6 | 13.3 | 0.01 | 13 | 172 | |
| 5×2.5 | 13.9 | 7.98 | 0.009 | 22 | 257 | |
| 5×4 | 16.5 | 4.95 | 0.007 | 27 | 386 | |
| 5×6 | 17.3 | 3.3 | 0.006 | 35 | 518 |
